Solutions - Indoor geolocation

Indoor traceability

Our Bluetooth BLE tags

Our indoor solution, composed of miniaturized tags and anchors, is very simple to implement and deploy since it requires no infrastructure.
TAG_EN

Small objects

Low power technology

Communication : BLE, Lora, Wifi or Ethernet

Thermal sensor

Operational in an industrial environment

Batteryless photovoltaic tags, powered by light

Discover sustainable innovation with the ivBeacon Eos, EosFlex mini and EosFlex tags, battery less photovoltaic devices powered by light.
Available in a waterproof version with IP68 protection, these tags can be completely immersed in water and operate both indoors and outdoors, even under artificial light.

Thanks to their ability to operate in degraded mode under lower light levels, they guarantee uninterrupted performance. These tags are ideal for industrial applications and energy management in connected buildings, offering an efficient and reliable solution.

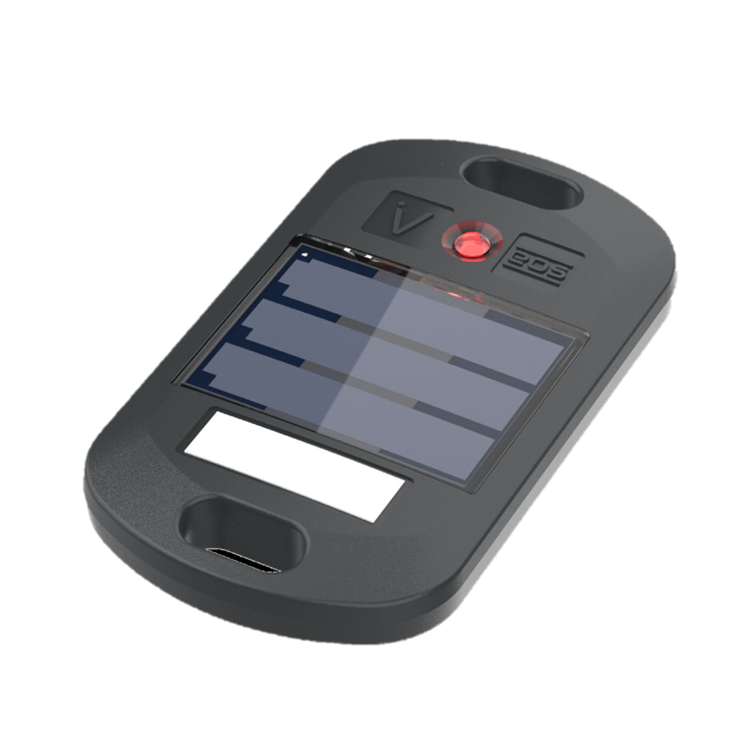

ivBeacon Eos

Waterproof tag

IP68, can be fully
submerged in water

Weight

< 10g

Working luminance*

Unlimited autonomy in lighting conditions above 60 lux
  • Image (1)

Dimensions

55 x 32 x 6 mm

Battery life

Up to 16 weeks

Sensors

Temperature, accelerometer, LED
(*) Working luminance: Below this value, the device will get the power from the battery

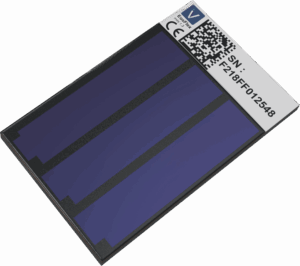

ivBeacon EosFlex mini

Weight

< 1g

Working luminance*

Unlimited autonomy in lighting conditions above 60 lux
  • Eosflexmini Transparent2

Dimensions

31 x 19 x 3 mm

Battery life

Up to 3 weeks
(*) Working luminance: Below this value, the device will get the power from the battery

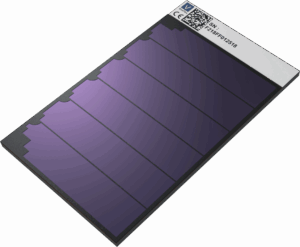

ivBeacon EosFlex

Weight

< 1g

Working luminance*

Unlimited autonomy in lighting conditions above 30 lux
  • Eosflex Transparent2

Dimensions

49 x 30 x 3 mm

Battery life

Up to 3 weeks
(*) Working luminance: Below this value, the device will get the power from the battery

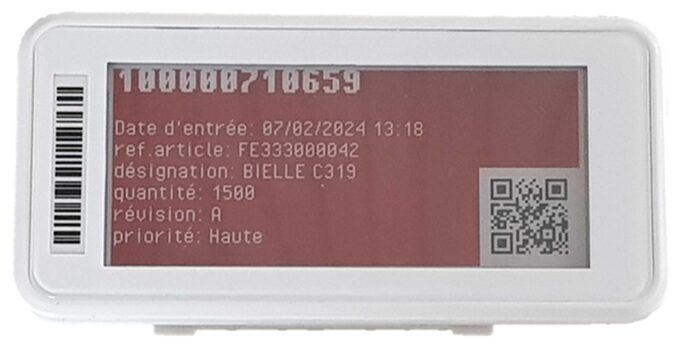

ivBeacon Display

Screen Size

2.1 inch

Power

2*CR2450 battery
Tagafficheur Prioriterouge

Total Size

74*40*12mm

Battery life

> 4 years

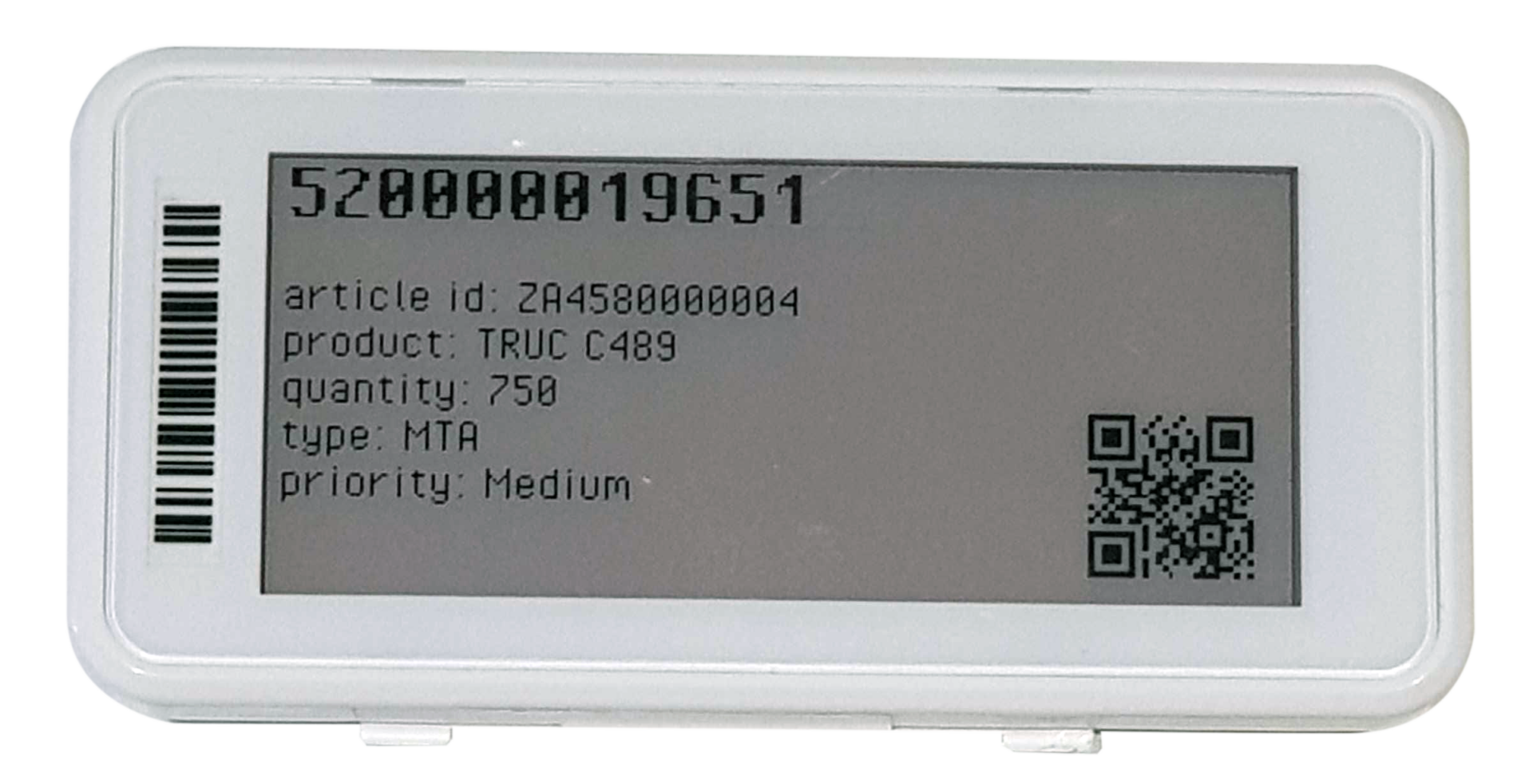

Screen Size

2.9 inch

Power

2*CR2450 battery
Tag

Total Size

93*44*12mm

Battery life

>4 years
The ivBeacon Display by inVirtus Technologies provides an accurate, real-time geolocation solution for your production orders, effectively eliminating wasted time searching for parts and preventing production delays.

The tag and inVirtus' wireless anchors communicate bidirectionally, ensuring remarkable accuracy in pinpointing P.O. locations, even in challenging metallic environments.
Discover More

Wireless Distance

Outdoor: 100m
Indoor: 30-50m

Transmitting Protocol

- BLE4.1
- BLE5.0

Installation

- 3M
- Pylons

Material

ABS

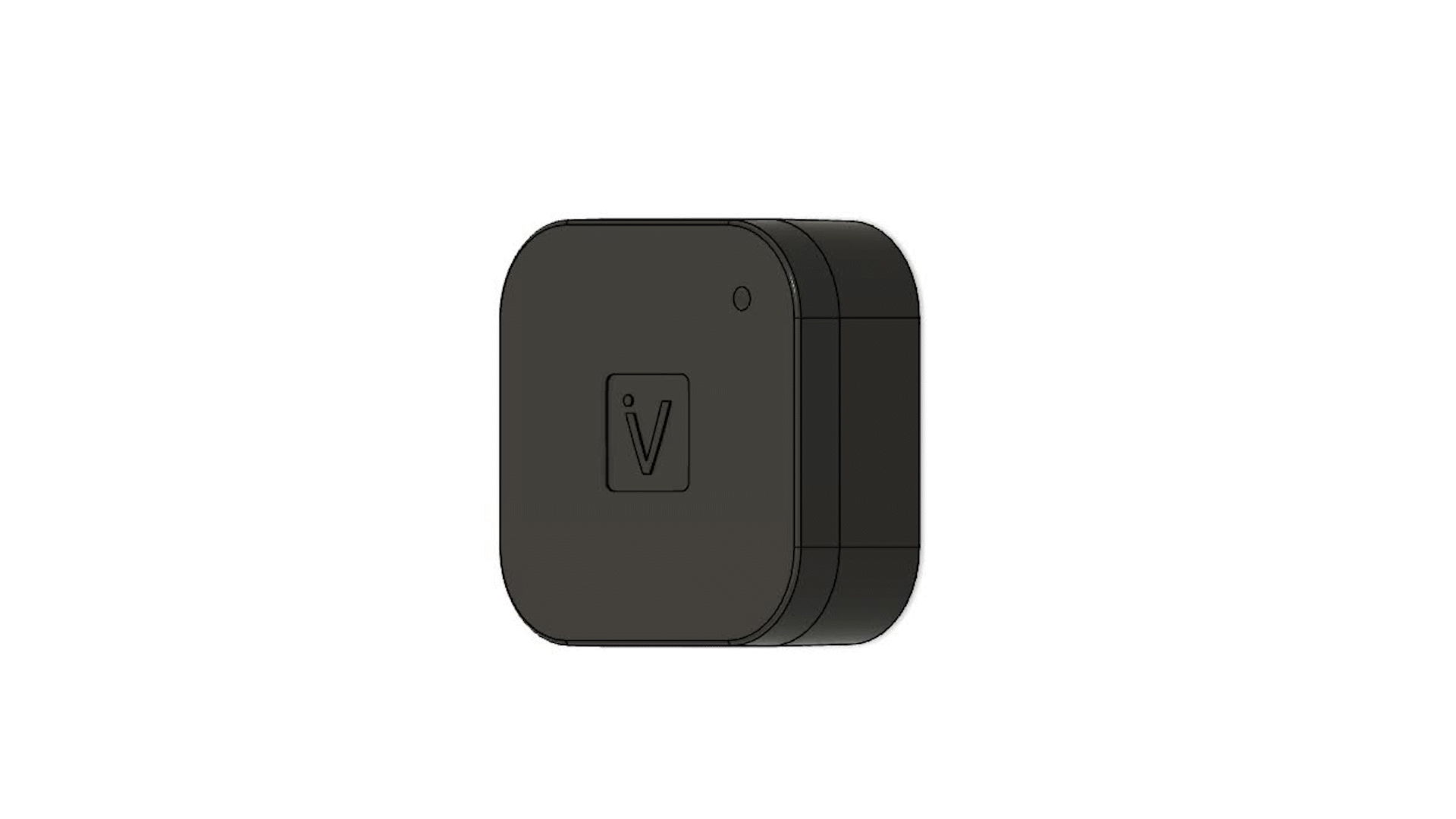

ivBeacon Lite

Battery life

10 years

Waterproof

IP67

Temperature

-40°C / +85°C

Triggering on event

Bouton / LED (On/Off)

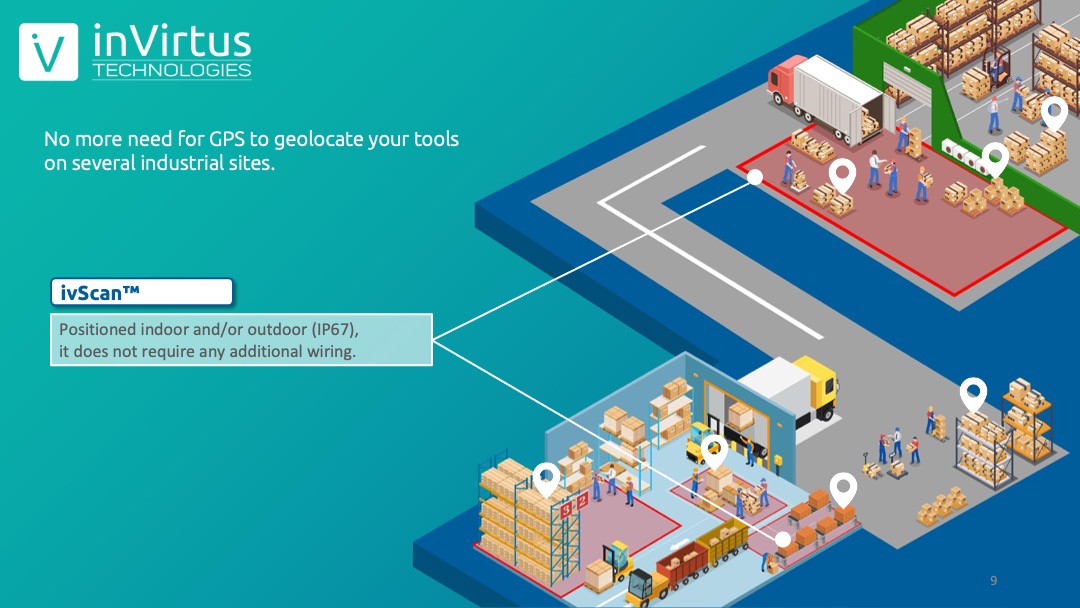

BLE Anchor

Set up to detect incoming and outgoing flows from an area inside your buildings. The anchors are calibrated to detect Tags/Trackers at a precise distance. The Lora BLE anchor is autonomous in communication and power supply.
ANCRE_EN

Plug&Play

Bluetooth Low Energy

Reach 50 m

ivScan Athéna

Battery life

5 years

Waterproofing

IP67
  • ancre-autonome
  • dimensions-ancre-autonome

Temperature

-40°C / +85°C

BLE / LoRa antenna

Omnidirectional

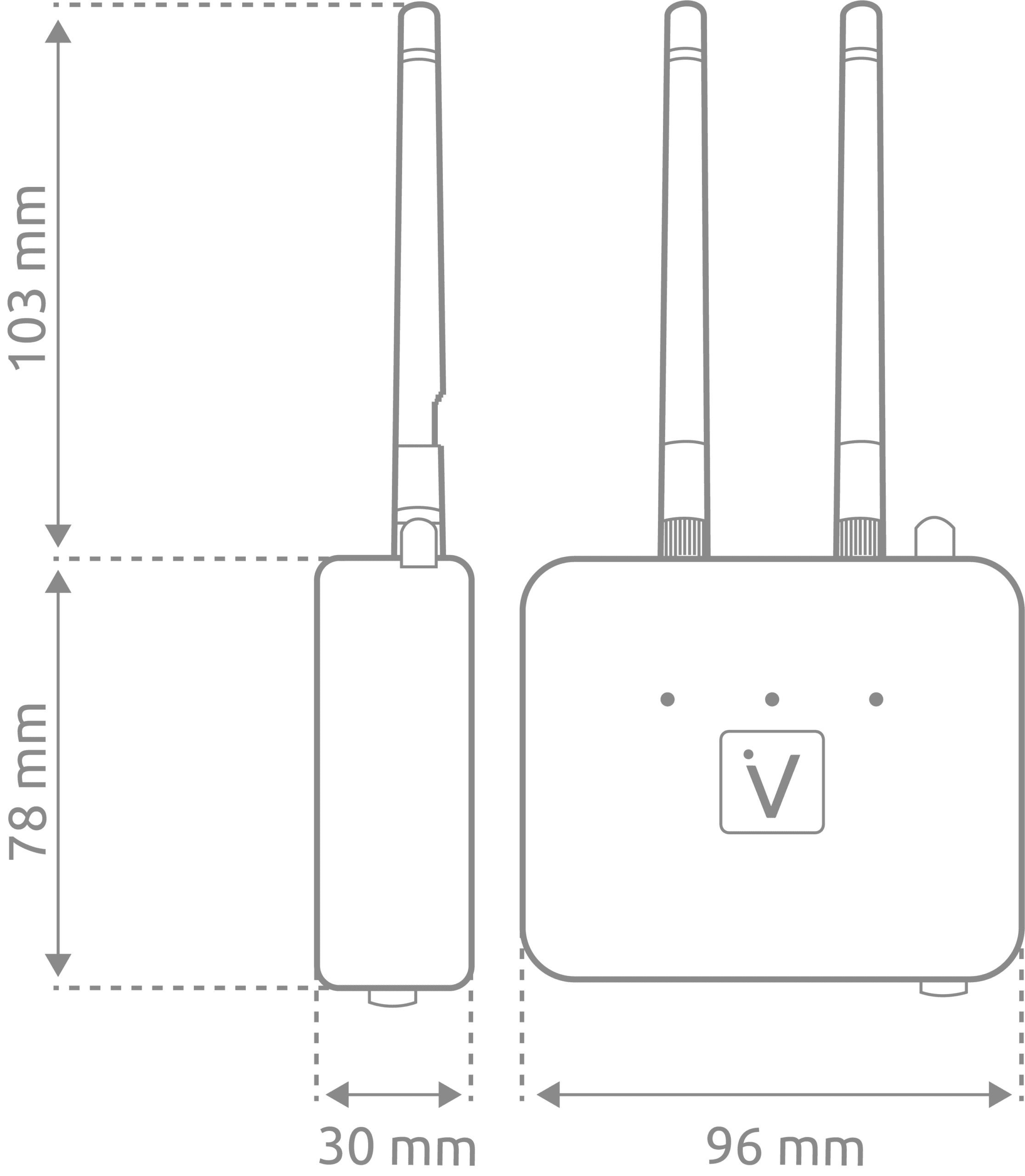

ivScan Chronos

Connection

Ethernet / Wifi

Waterproofing

IP65
  • Ancre-temps-réel
  • Dimenssion-ancre-temps-réel-(face)

Temperature

-25°C / +85°C

Communciation

MQTTS

All frequently asked questions about indoor traceability:

How do I install my sensors ?

Installing inVirtus sensors is very simple: tags and trackers can be installed temporarily or permanently using double-sided adhesive or Velcro tape, hose clamps, or screws/rivets.
Stand-alone anchors are attached to the wall in the same way (adhesive/velcro/screw) and do not require wiring. Real-time anchors simply require an RJ45 cable with internet access.

Can I track my WIP and manufacturing order in my plant?

The tags are designed to be fixed on any type of asset and thus to follow carts or production batches or manufacturing order documents.

Once I have identified the area, how will I find my equipment in that area?

inVirtus tags and trackers are equipped with an LED and a buzzer that can be activated on demand, so that they can be easily and quickly identified among a large number of devices in the area.

How can I associate the tags with my equipment?

The pairing between your asset and the tags can be done individually or by mass import into the platform.
If a tag is temporarily paired with several different devices, the operation is done directly via the smartphone using the inVirtus Android app, using QR code or barcode.

How does the BLE work?

Bluetooth Low Energy is the technology chosen by InVirtus to offer a simple, precise and reliable system for indoor geolocation: GPS often does not work indoors, or does not offer sufficient accuracy.
For indoor geolocation, inVirtus uses autonomous BLE anchors (5 years autonomy), which allow to define zones within storage or production facilities, and BLE tags or beacons, which are fixed on the mobile asset to be tracked. Note that inVirtus GPS trackers also integrate BLE technology, and can thus be used for hybrid geolocation: GPS outdoors on the route, and BLE indoors.

Can a customer install his indoor geolocation system by oneself?

The InVirtus indoor geolocation system is extremely easy to install and set up: the autonomous anchors (wireless) are easily fixed on any support (wall, ceiling, warehouse rack...) using screws, rivets, clamps, adhesive or double-sided Velcro...
In the same way, BLE tags can be fixed temporarily or permanently on the monitored equipment. The settings (anchor range, zone size, frequency of position readings, etc.) are easily configured in the inVirtus Cloud platform.
inVirtus always supports its customers in this initial phase of implementation.
